Three Classic Blockchain Attacks, Rebuilt in a Rust Local Lab

Sybil, Eclipse, and Network Partition — from real incidents to local simulations

I wanted one local Rust lab where I could run three classic blockchain P2P failure modes with one CLI: Sybil, Eclipse, and network partition. The goal was not to attack a live network. The goal was to make each failure mode observable: which peers entered the table, which state message arrived, and whether the victim still had an honest peer to compare against.

Everything runs on 127.0.0.1 in rust-p2p-protocol-lab.

Overview: why these three attacks?

The three modes, in the order I ran them:

• Sybil: one actor creates many identities. Cheap wallets in airdrops, cheap NodeIds in P2P; I track sybil_peers / total_peers to see how many peer slots one operator can fill.
• Eclipse: those identities try to control what a victim sees. Real concern is attacker-controlled state; in the lab I check state_diverged—whether bad state sticks when honest peers remain.
• Partition: two groups stop seeing each other. Real chain splits show why split views matter; locally I count cross_peers_remaining to see whether Group A still advertises Group B.

Lab setup: one Rust workspace, three scenarios

Four crates, one runner:

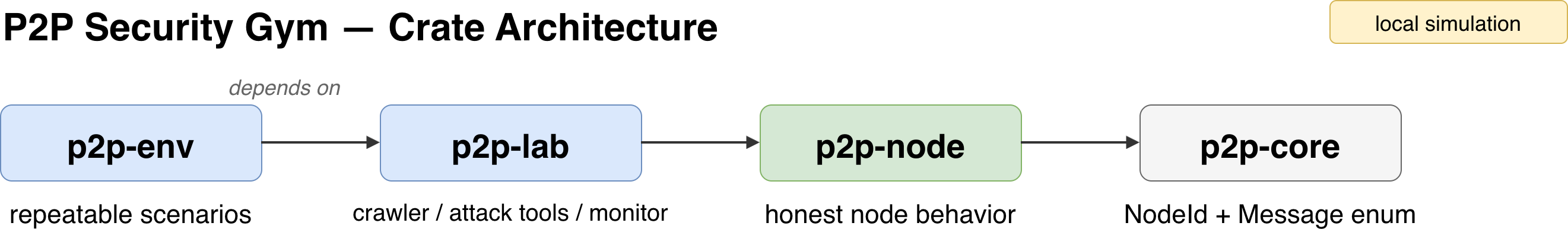

Fig. 1. `p2p-core` → `p2p-node` / `p2p-lab` → `p2p-env`.

• p2p-core: NodeId, Message
• p2p-node: honest node behavior, peer table (MAX_PEERS = 8)
• p2p-lab: crawler and attack tools
• p2p-env: scenario runner (cargo run -p p2p-env -- ...)

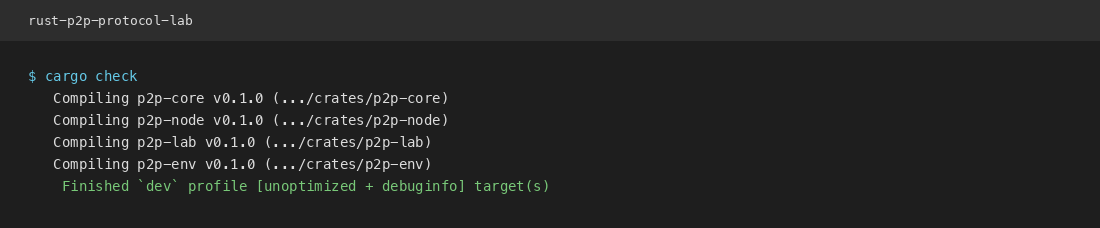

Fig. 2. Workspace build.

Protocol is small on purpose:

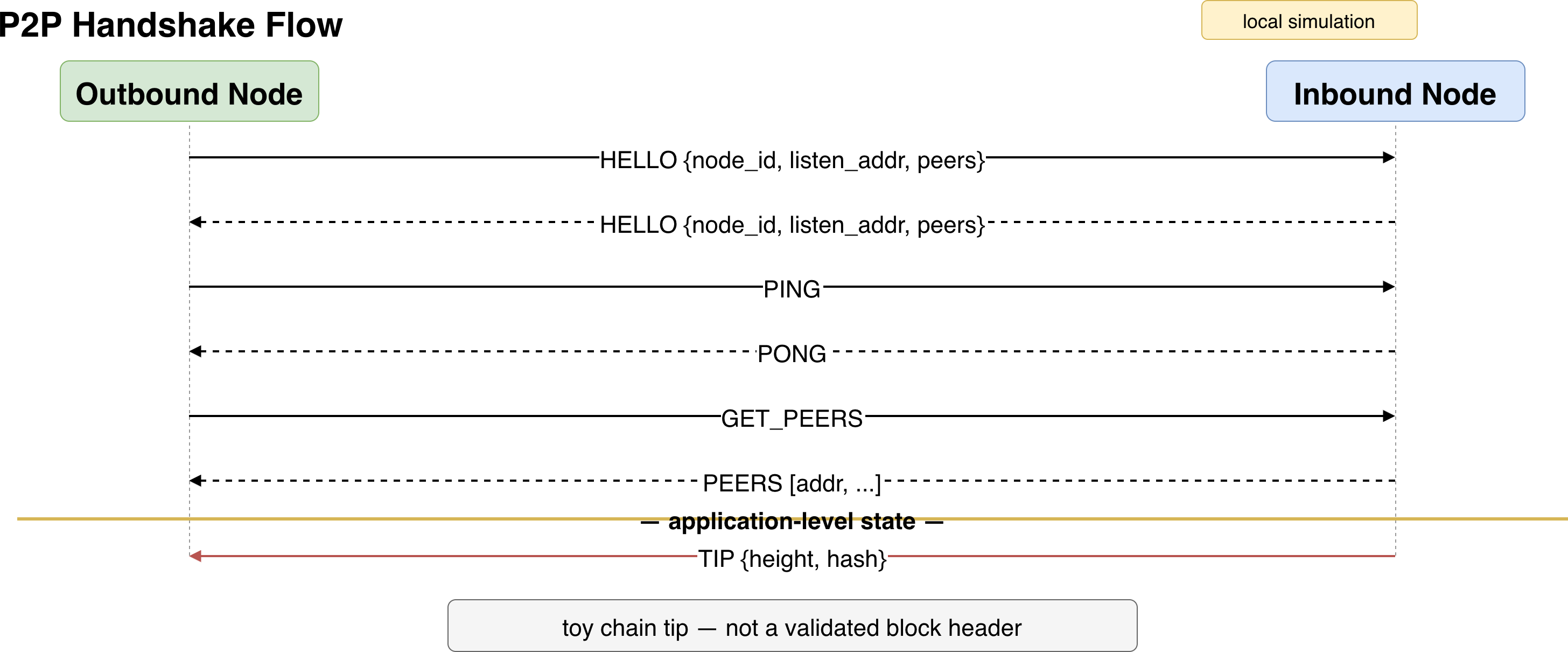

Fig. 3. `Hello`, `Ping`/`Pong`, `GetPeers`/`Peers`, `Tip`.

pub enum Message {
    Hello {
        node_id: NodeId,
        listen_addr: SocketAddr,
        peers: Vec<SocketAddr>,
    },
    Ping,
    Pong,
    GetPeers,
    Peers(Vec<SocketAddr>),
    Tip {
        height: u64,
        hash: String,
    },
}

• Hello: identity + listen address + known peers
• Ping / Pong: keepalive
• GetPeers / Peers: what the gym queries after each run
• Tip: a loggable state string so I can see which hash the victim picked up

Tip is not a validated block header. It exists so the Eclipse scenario has something to push besides peer-table entries.

Attack 1 — Sybil: many identities, limited peer slots

Real case

In May 2022, Optimism removed more than 17,000 Sybil addresses from OP Airdrop #1—wallet farming that had slipped through initial filters. The Block reported the same enforcement. That is application-layer abuse, not a P2P attack. The contested resource was token eligibility, not peer slots.

The lab tests the same pressure with a different object: one operator, many cheap NodeIds, eight peer slots. Wallet farming and peer-table flooding are not the same mechanism. They share one question: how much can one actor gain by multiplying identities?

Local model

In my lab, Sybil identities are local nodes with different NodeIds. The victim has MAX_PEERS = 8. I launched 10 Sybil identities and measured how many peer slots they occupied.

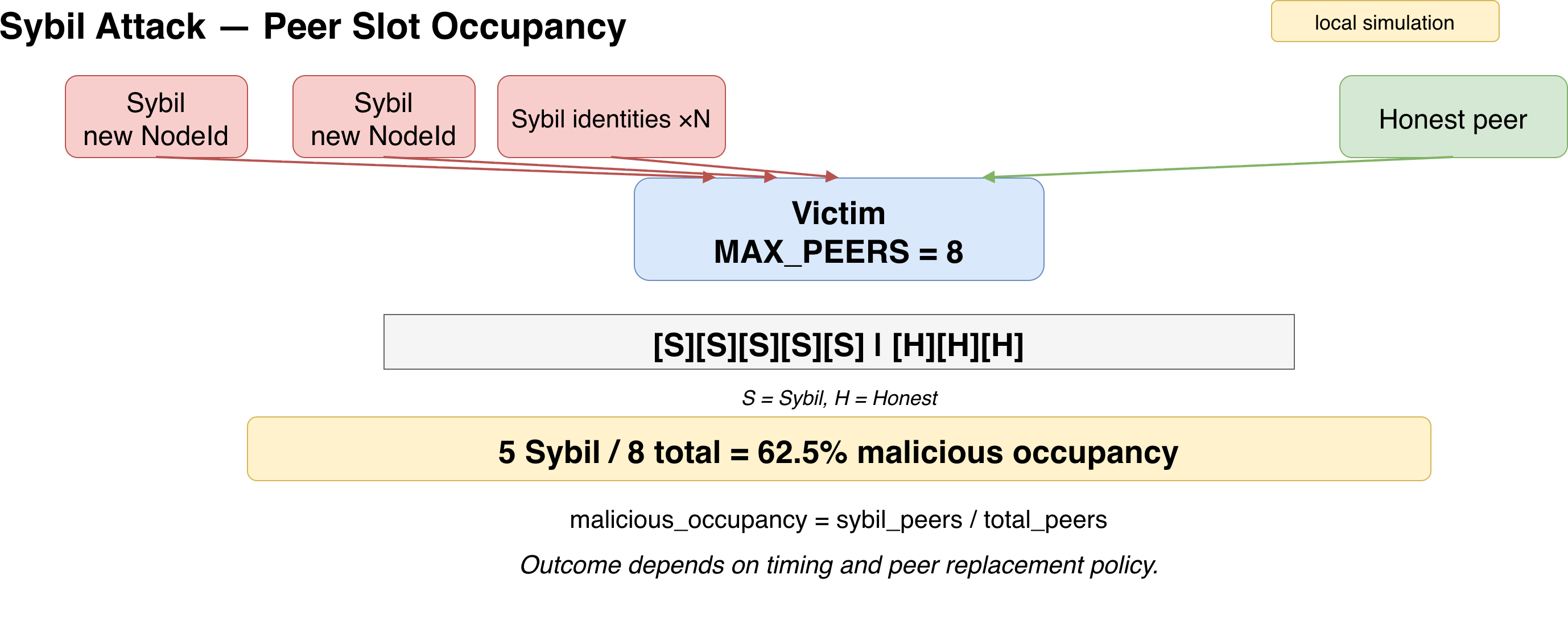

Fig. 4. Eight slots; many identities compete to hold them open.

let occupancy = sybil_peers as f64 / peers.len().max(1) as f64 * 100.0;

cargo run -p p2p-env -- --honest 4 --attack sybil --sybil 10

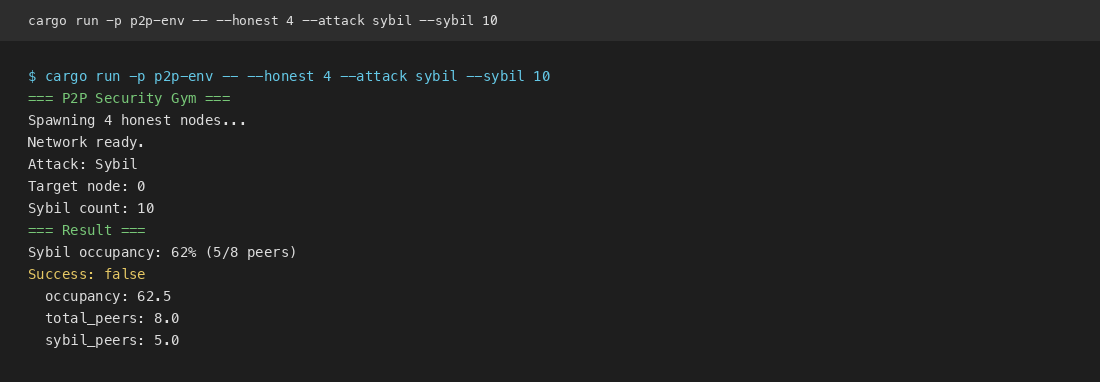

Fig. 5. 5/8 slots Sybil; `occupancy: 62.5`, `Success: false`.

I expected full capture when I outnumbered the table. I got 5 of 8 slots instead. Honest nodes connected during reset() before every Sybil session landed.

This was not Sybil success. It was 62.5% malicious occupancy, i.e., real pressure on the peer table, but three honest slots still held.

Attack 2 — Eclipse: fake state is not enough

Real case

Marcus et al.’s “False Friends” work showed an Ethereum node could be isolated by flooding its discovery table with attacker-controlled peers, then feeding that victim a filtered chain view. The attack targets peer selection and connection management—not consensus math. The paper reports that countermeasures were incorporated into Geth v1.9.0.

I am not reproducing that attack. It is the reference for why Eclipse sits next to Sybil: Sybil fills slots; Eclipse cuts honest cross-checks.

Local model

The lab strips that down to one check: attacker peers send a fake Tip—does the victim lose every honest peer?

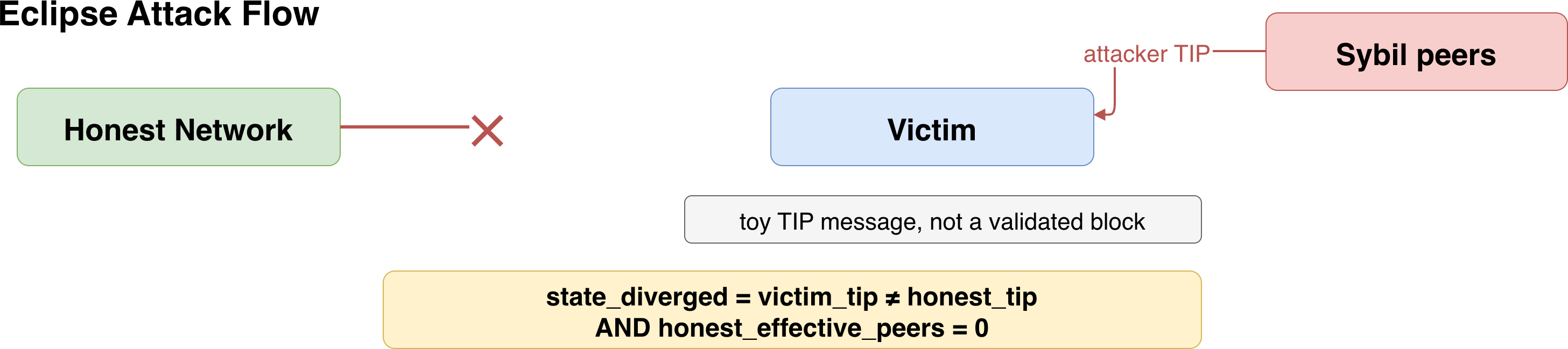

Fig. 6. Eclipse path: connect, send fake `Tip`, check peer mix.

let state_diverged = victim_tip != honest_tip && honest_peers == 0;

cargo run -p p2p-env -- --honest 4 --attack eclipse --sybil 20

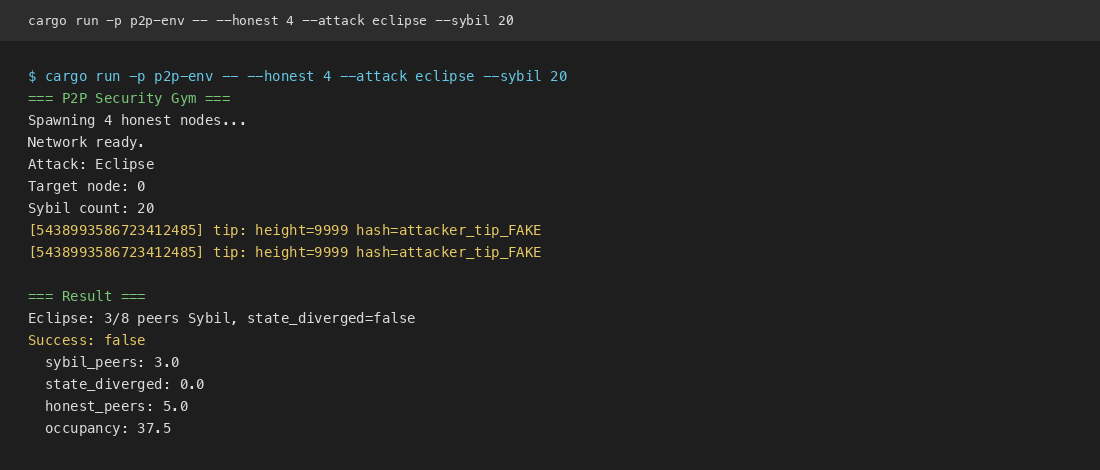

Fig. 7. `attacker_tip_FAKE` logged; 3/8 Sybil, 5 honest; `state_diverged=false`.

This was the most useful failed run. The fake state arrived, but the victim still had honest peers. I stopped treating Sybil and Eclipse as the same thing after this run. Sybil gave me peer pressure. Eclipse required removing the honest path.

In this lab, Eclipse requires honest_peers == 0 before state_diverged can flip true.

Attack 3 — Network partition: when groups stop seeing each other

Real case

In August 2021, a Geth bug led some unpatched nodes onto a minority chain—a brief split until operators patched. Bitcoin had an earlier version of the same failure mode: BIP 50 documents a March 2013 fork where Bitcoin 0.8 accepted a block that pre-0.8 nodes rejected.

Neither incident used my blocklist model. Both show what happens when two groups stop sharing the same view: recovery becomes a client rollout and coordination problem, not just a consensus rule.

Partition is also the setup people often cite for double-spending scenarios: broadcast conflicting transactions to two isolated groups. That requires a transaction layer, which this lab does not have. Here I only check whether cross-group peers disappear.

Local model

Six local nodes, Group A [0,1,2] and Group B [3,4,5], symmetric blocklists inside the process. Metric: does Group A’s peer table still list any Group B port?

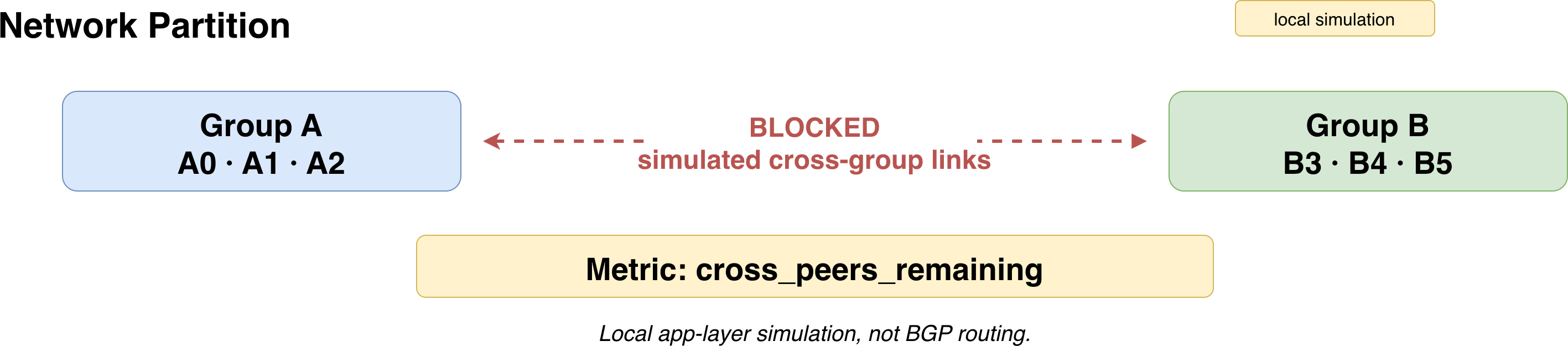

Fig. 8. Symmetric blocklists; metric is `cross_peers_remaining`.

let cross_peers = a_peers
    .iter()
    .filter(|p| addrs_b.iter().any(|b| b.port() == p.port()))
    .count();

cargo run -p p2p-env -- --honest 6 --attack partition

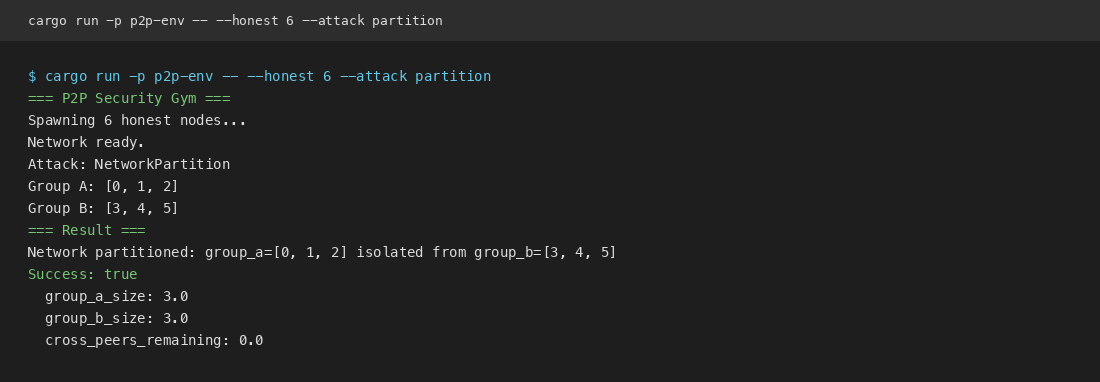

Fig. 9. Group A `[0,1,2]` / Group B `[3,4,5]`; `cross_peers_remaining: 0`, `Success: true`.

This is an application-layer local simulation, not BGP routing and not a real Internet partition.

Closing

The most useful result was not the clean partition success. It was the failed Eclipse run. I could deliver fake state, but I could not make that fake state become the victim’s only view while honest peers remained. That gap is the real design space: peer replacement, anchor peers, diversity rules, identity cost, and monitoring.

Next knobs I want to turn in the same lab:

• signed NodeId or another identity-cost mechanism
• peer diversity policy (subnet / operator bucketing)
• anchor peers that eviction cannot drop
• different peer eviction rules under slot pressure
• IDS scoring on peer-table concentration
• rerun all three modes and compare occupancy, honest_peers, and cross_peers_remaining

Appendix

Reproduce

git clone https://github.com/egpivo/rust-p2p-protocol-lab.git
cd rust-p2p-protocol-lab
cargo run -p p2p-env -- --honest 4 --attack sybil --sybil 10
cargo run -p p2p-env -- --honest 4 --attack eclipse --sybil 20
cargo run -p p2p-env -- --honest 6 --attack partition
